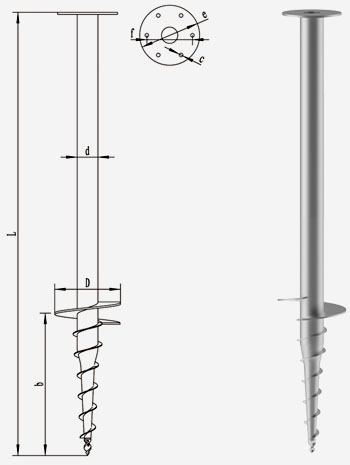

| 型号 |
总长L
(mm) |
管直径d
(mm) |
旋片高度b
(mm) |
旋片直径D
(mm) |
法兰直径e
(mm) |
孔距f
(mm) |
孔径c
(mm) |
| LDR-YDFA76x1600 |
1600 |
76 |
480 |
203 |
220 |
167 |
14 |
| LDR-YDFA76x2100 |
2100 |
76 |
480 |
203 |
220 |
167 |
14 |
| LDR-YDFA89x1600 |
1600 |
89 |
550 |
254 |
220 |
167 |
14 |
| LDR-YDFA89x2100 |
2100 |
89 |
550 |
254 |
220 |
167 |
14 |
| LDR-YDFA89x2500 |
2500 |
89 |
550 |
254 |
220 |
167 |
14 |
| LDR-YDFA114x1600 |
1600 |
114 |
630 |
305 |
220 |
167 |
14 |
| LDR-YDFA114x2100 |
2100 |
114 |
630 |
305 |
220 |
167 |
14 |
| LDR-YDFA114x2500 |
2500 |
114 |
630 |
305 |
220 |
167 |
14 |
|
|
|
